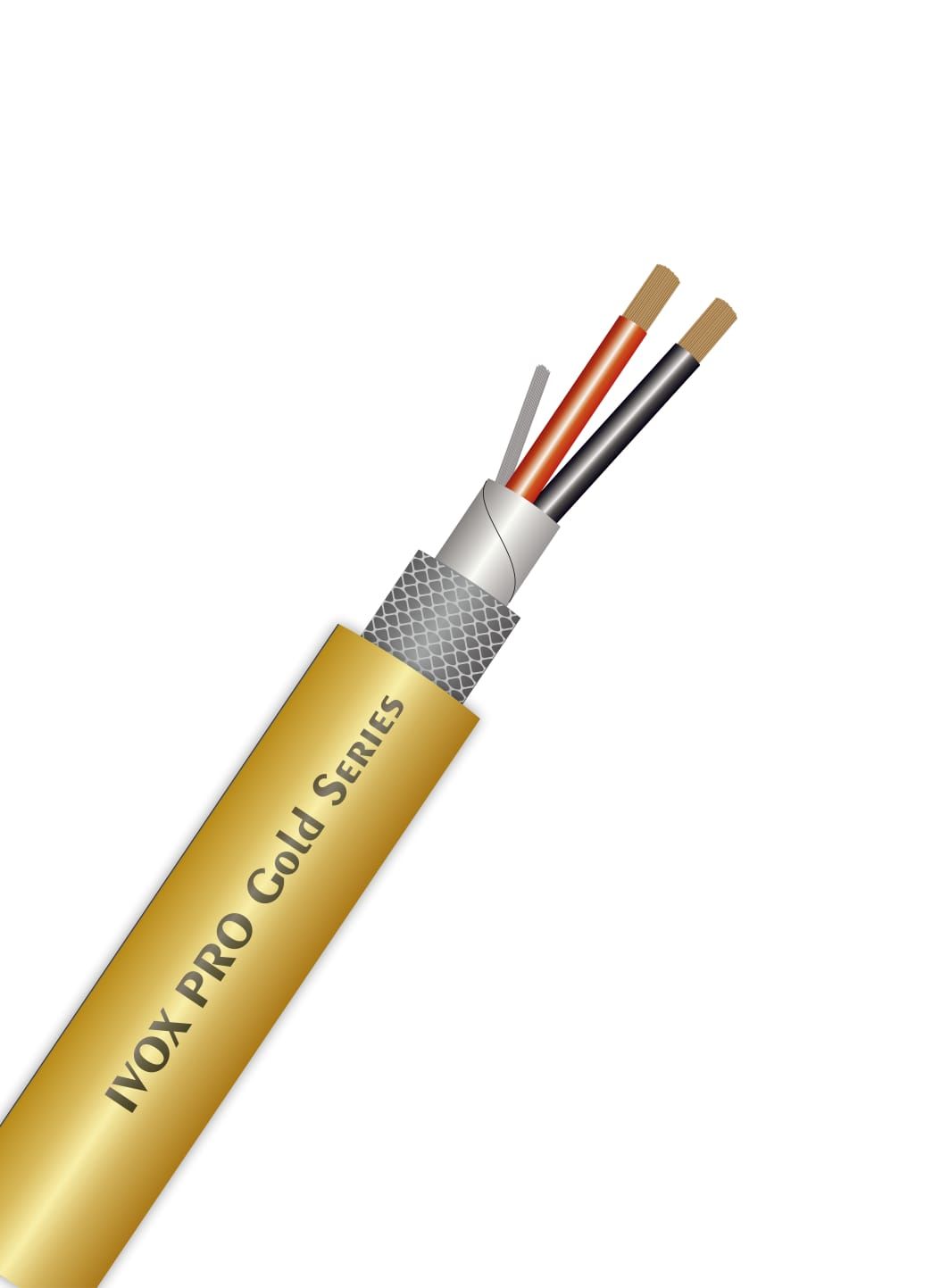

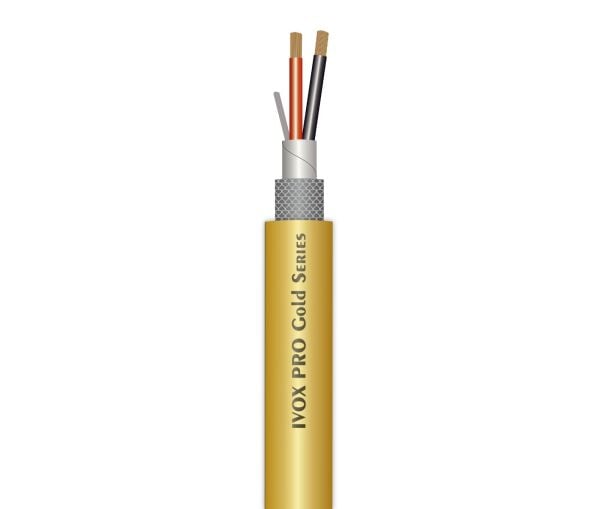

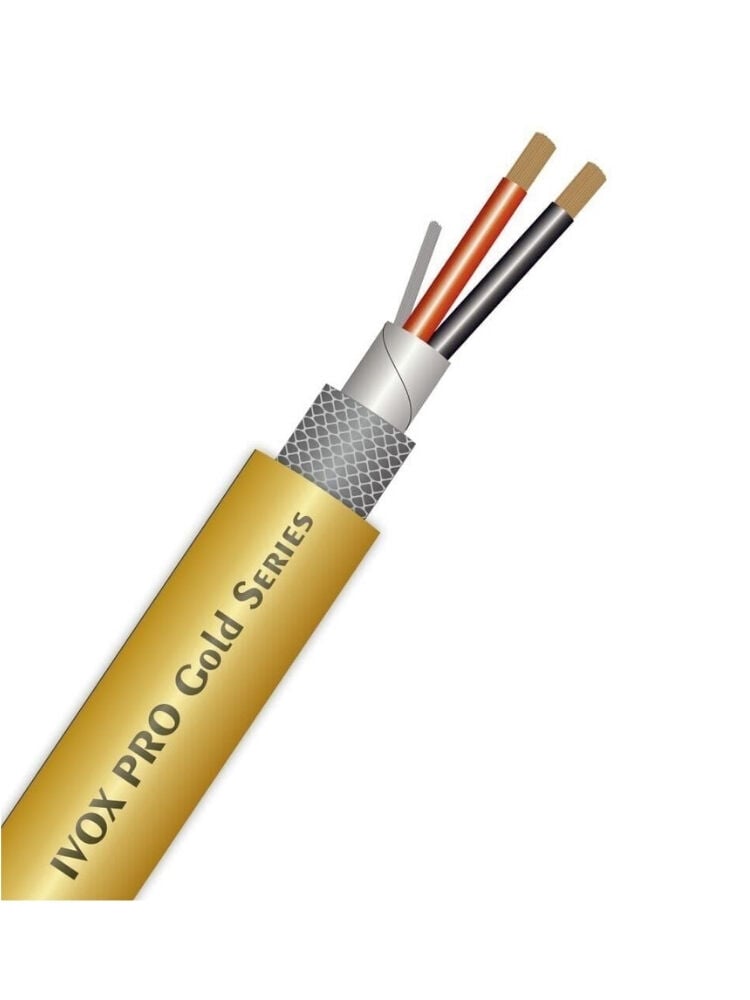

Ivox Progold 2X2,5mm Hoparlör Kablosu( 1 metre fiyatıdır )

CONSTRUCTION DATA

PRG2215SPC PRG2225SPC

Cross Section 1,5 mm² 2,5 mm²

Stranded Copper Conductor 84x0,15 mmØ Pur OFC Stranded Bare 140x0,15 mmØ Pur OFC Stranded Bare Copper Copper

Conductor Insulation 2,60±0,03 mmØ, Special PVC 3,00±0,05 mmØ, Special PVC

Conductor Color Code Black – Red Black – Red

I. Screen PET + 0,50 mm² Tinned Copper Drain PET + 0,50 mm² Tinned Copper Drain

Wire + AL-PET tape Wire + AL-PET tape

II. Screen 80%±5 Coverage Tinned Copper Braiding 80%±5 Coverage Tinned Copper Braiding

Outer Sheath Special Nitrile PVC Special Nitrile PVC

Outer Diameter 7,50±0,3 mmØ 8,50±0,4 mmØ

Sheath Color Gold Gold

Weight 90±5% kg/km 120±5% kg/km

ELECTRICAL DATA

Conductor Resistance <12,5 Ω/km <7,0 Ω/km

Insulation Resistance >200 MΩxkm >200 MΩxkm

Capacitance (Max.)

Core/core 150 pF/m 170 pF/m

Core/screen 250 pF/m 350 pF/m

Test Voltage 2 kV 2 kV

Max. Operating Voltage 300 V 300 V

MECHANICAL DATA

Minimum Bending Radius 10xD (D = outer dia.)

Temperature Range -30 °C to + 70 °C ( for fixed installation)

-5 ° to + 50 °C (Flexible)

GENERAL PROPERTIES

RoHS Compliant Yes
