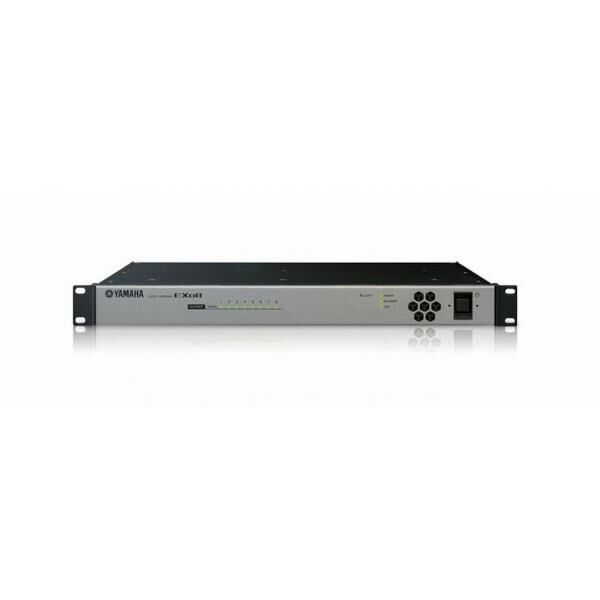

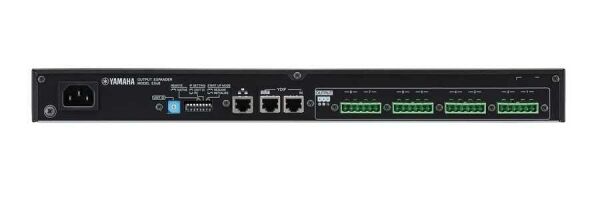

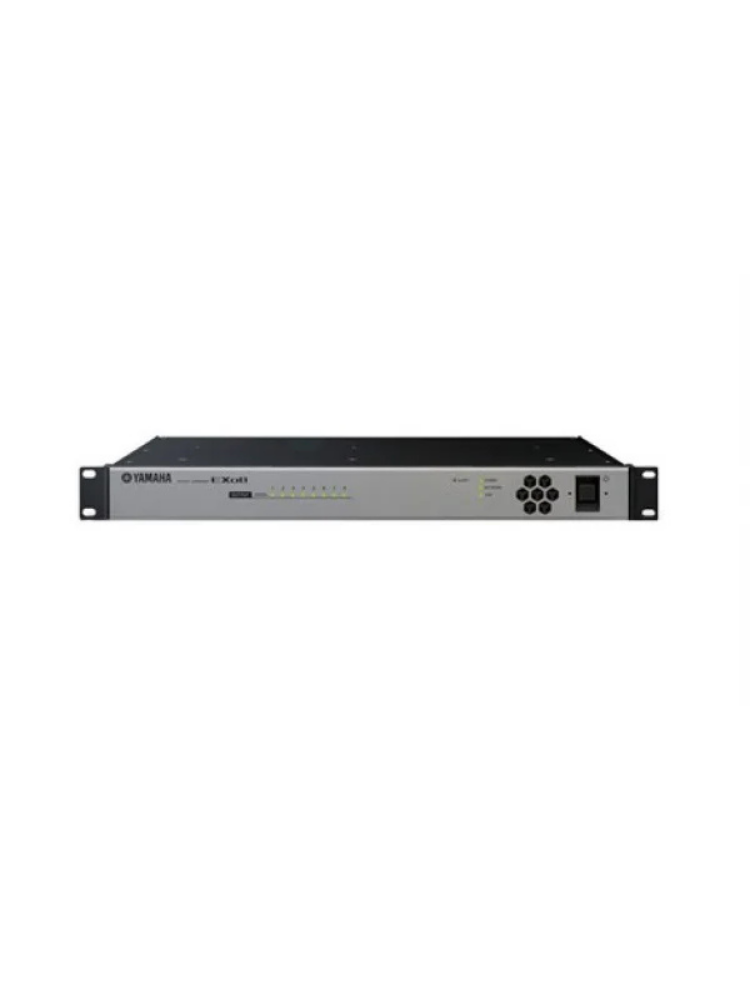

Yamaha EXO8 MTX Matrix Mikser İçin 8 Kanal Çıkış Genişleticisi

yamaha EXO8

The Yamaha EXo8 output expanders feature 8 channels of DA converters that produce high quality analog audio by converting digital output from MTX Series processors via YDIF.

Yamaha EXo8 Specifications:

Maximum number of simultaneously usable devices: A total of seven EXi8 and EXo8 devices. (However in a system, a total of up to20 devices, including devices such as the MTX series and XMV series, can be used.)

Power cord length: 8.2ft

Included items: Power cord, Euroblock plugs (3-pin, tabbed) x 8, cable ties x 8, Owner’s manual

Sampling frequency: 48kHz/44.1kHz

Signal delay: Less than 2.5ms

Frequency response: 20Hz to 20kHz, -1.5dB min, 0dBtyp., +0.5dB max.

Total harmonic distortion: Less than 0.05% (+4dBu,Gain:-6dB); less than 0.1% (+4dBu, Gain:+66dB)

Dynamic range: 107dB (Gain:-6dB)

Equivalent input noise (EIN): -126dBu (Gain: +66dB)

Crosstalk / Channel separation: -100dB (@1kHz)

Maximum cable length: [YDIF] connector: 30 meters (Cable length between devices)

OUTPUT SIGNAL: GREEN -40dBFS

Format NETWORK connector: 100Base-TX

Cable specifications: [YDIF] connector: CAT5e or better Ethernet STP cable (Straight connected. All 8 pins must be connected.)

NETWORK connector: CAT5e or better Ethernet STP cable

Power supply voltage: US/Canada: 110V–240V 50/60Hz

Power consumption: 25 W max.

Heat dissipation (per hour): 21.5 kcal max.

Operating temperature range: 0 degrees Celsius – 40 degrees Celsius

Storage temperature range: -20 degrees Celsius – 60 degrees Celsius

NC value: 24 (1m from the front panel)

Dimensions: 18.9" W x 1.73" H x 13.8" D

Weight: 9.48 lbs
